LT Switchgear Panels

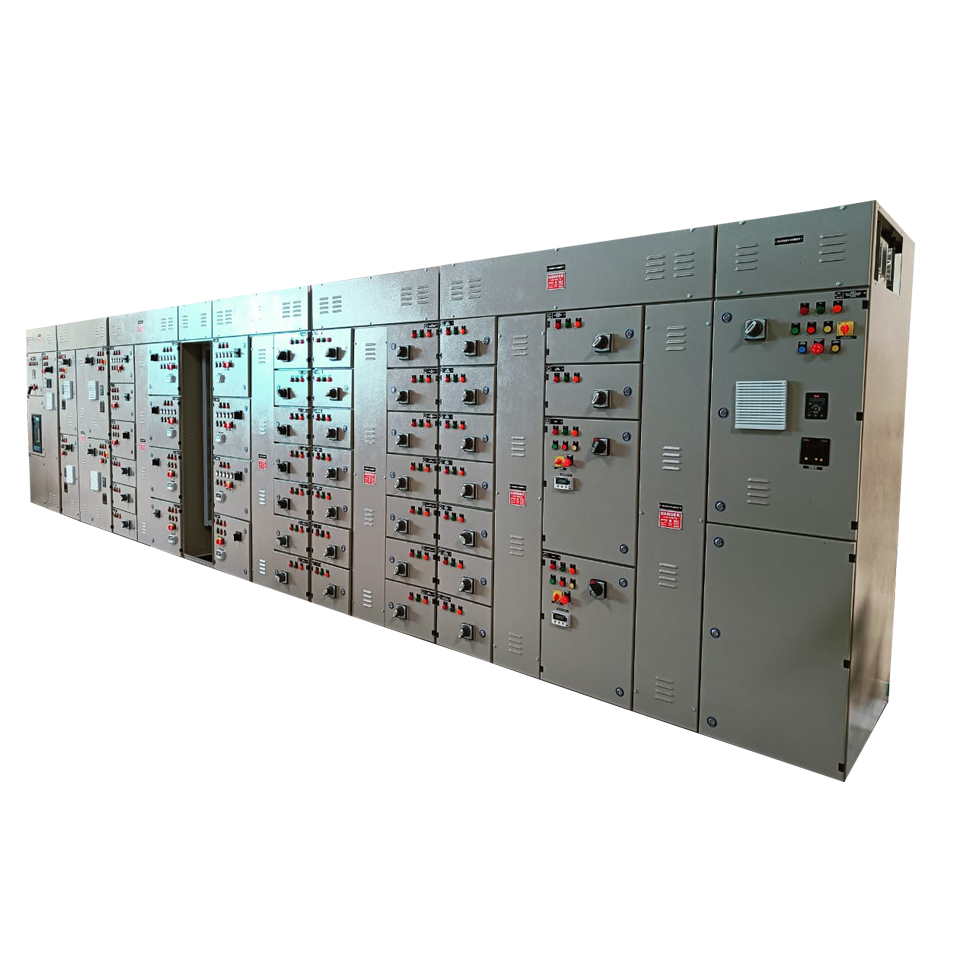

LT Switchgear Panel

LT Switchgear Panels

LT Switchgear Panels - EV PTA Panel

  • Type tested for 4000A 65kA.
  • Short circuit current test.
  • Impulse dielectric test.
  • Temperature rise test.
  • PCC/MCC/IMCC/Drive panels.
  • Outdoor/Indoor.

ACTIVE HARMONIC FILTER / STATIC VAR GENERATOR

The active power filter (APF) is mainly composed of controller, isolation switch (circuit breaker), contactor, IGBT, driving circuit, protection system, fuse, connection reactor, DC capacitor, etc. The controller measures phase A, C reactive power(current), produces control signal, drives IGBT on/off and produces harmonic and reactive current same as system harmonic current but in an opposite phase to filter system harmonic, reduce reactive power and keep system power factor approximately at 1.

Our APF equipment is module structure, there are two types: Wall Mounted and cabinet mounted. The Wall Mounted type is preferred to be used in equipment improvement which is very convenient to install. The Sanhe Modular Active Harmonic Filter series are suitable for applications of all types, providing harmonic mitigation, load balancing and step-less reactive power compensation for inductive and capacitor loads.

Main Parameters

  • Rated voltage: 0.48KV
  • Frequency: 45Hz ~ 63Hz
  • Three level topology and high efficiency up to 97%
  • Filtering capacity: THDi (current distortion rate) < 5%
  • Response time: less than 15ms
  • Communication interface: RS485, network port, Wi-Fi

Features

  • Harmonic, dynamic reactive power and imbalance compensation mode available.
  • Compact and reasonable structure, flexible installation.
  • Combination of FFT and instantaneous power algorithm available.
  • 3DSP+CPLD control mode.
  • 2nd ~51th harmonic can be compensated simultaneously, and specific harmonic orders are programmable.
  • Harmonic compensation, reactive power compensation and three-phase unbalance compensation.
  • Communication protocol: the power of the general protocol, Modbus protocol, TCP/IP.
  • Fault alarm and recording function, can be as much as 500 alarm records.
  • Complete and effective protection measures (over-voltage, under voltage, short circuit, etc.).
  • Protection grade: IP20, other IP grades can be customized.
  • Human-friendly LCD displaying all data in numerical, waveform and spectrum formats.

Specification Sheet

Model Output Current (A) Electrical Wiring Net Weight (kg) Structure
APFM0.4-35/3(4)a 35 3 phase, 3 wires / 3 phase, 4 wires 32 Wall Mounted
APFM0.4-50/3(4)a 50 3 phase, 3 wires / 3 phase, 4 wires 32 Wall Mounted
APFM0.4-60/3(4)a 60 3 phase, 3 wires / 3 phase, 4 wires 40 Wall Mounted
APFM0.4-100/3(4)a 100 3 phase, 3 wires / 3 phase, 4 wires 45 Wall Mounted
APFM0.4-150/3(4)a 150 3 phase, 3 wires / 3 phase, 4 wires 48 Wall Mounted
APFM0.4-35/3(4)b 35 3 phase, 3 wires / 3 phase, 4 wires 32 Rack Type
APFM0.4-50/3(4)b 50 3 phase, 3 wires / 3 phase, 4 wires 32 Rack Type
APFM0.4-60/3(4)b 60 3 phase, 3 wires / 3 phase, 4 wires 40 Rack Type
APFM0.4-100/3(4)b 100 3 phase, 3 wires / 3 phase, 4 wires 45 Rack Type
APFM0.4-150/3(4)b 150 3 phase, 3 wires / 3 phase, 4 wires 48 Rack Type

Advantages

  • Optimize your harmonic filtering efficiency: the 3-Level Topology Design Approach

    Active harmonic filters analyze the line current harmonics and generate a compensation current at the opposite phase angle, "neutralizing" them. Attenuation > 97%.

  • Compact high performance

    Ultra-compact and space economical. User-friendly and easy to commission. Available in rack, wall mounting, and complete enclosure designs.

  • Enhanced Reliability Levels

    Incorporates intelligent FFT calculation for real-time sensing of network impedance, ensuring system stability. Advanced control algorithm for resonance protection.

  • Unique modular design

    Each module works independently, simplifying logistics, installation, and maintenance. Modular power ratings from 35A to 150A with unlimited parallel combination. Maximum capacity per cabinet can be 600A.
